Product Details & Capabilities

A detailed look at the tools included in Modality Simulator Pro v1.0.

MWL & Acquisition Simulation

Test your clinical workflow from scheduling to image transmission. Connect to standard DICOM Modality Worklists (MWL) and transition scheduled patients into an active acquisition.

  • Live MWL Polling: Query remote worklists using C-FIND with advanced filtering (Date, Patient ID, Accession Number).
  • MPPS Integration: Send Modality Performed Procedure Step updates (IN PROGRESS, COMPLETED, DISCONTINUED) precisely as a real modality would.
  • 16 Built-in Modalities: Accurately emulate CT, MR, US, PET, CR, Mammography, and more with exact SOP Class UIDs and realistic scan timings.
  • Push to PACS: Automatically transmit (C-STORE) acquired sequences directly to your configured PACS.

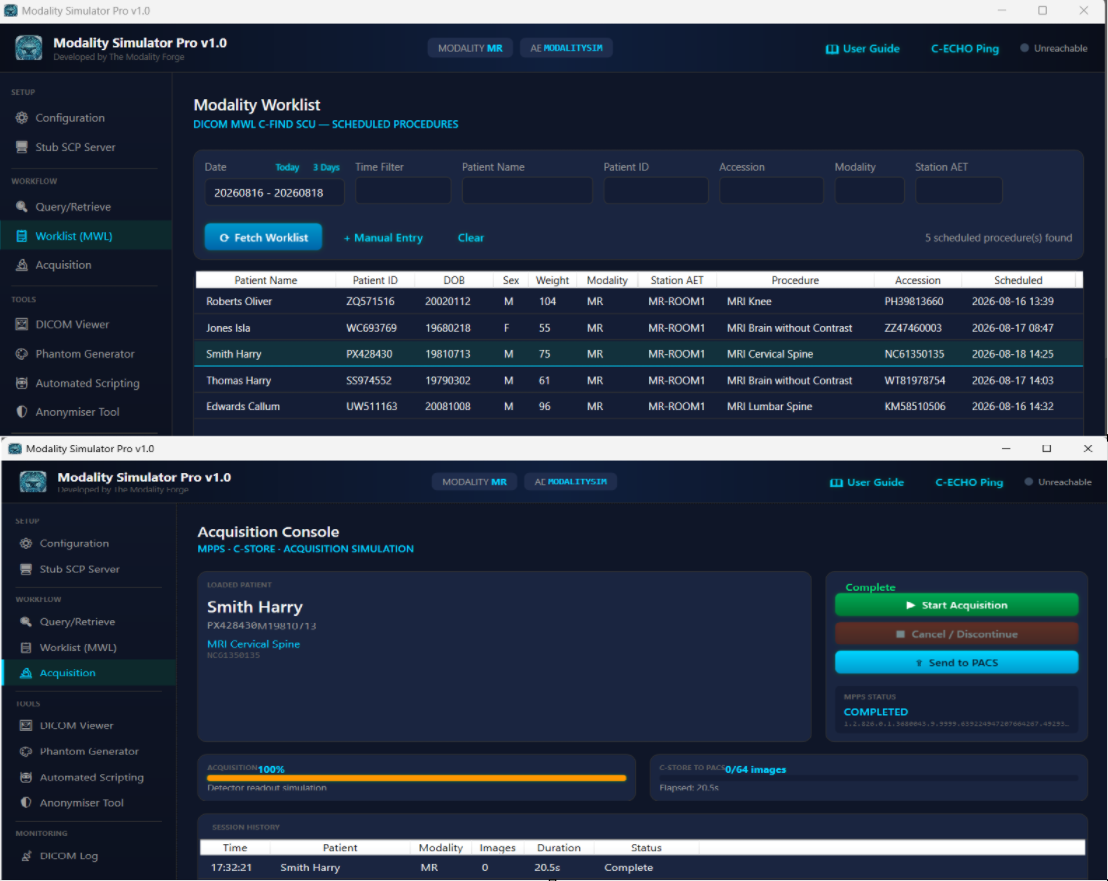

Acquisition and Modality Worklist Interface

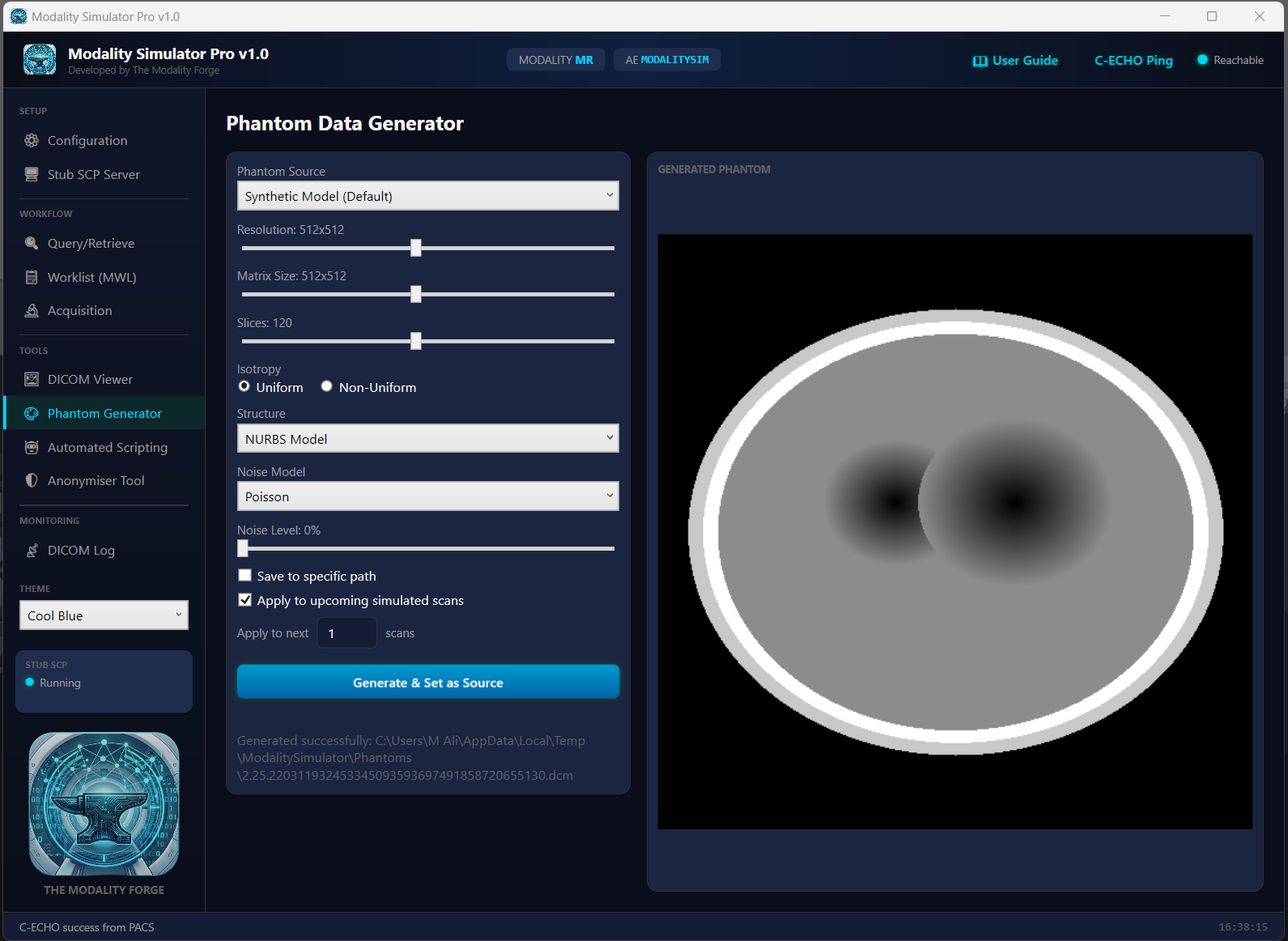

Synthetic Phantom Generator Interface

Synthetic Phantom Generator

Generate synthetic DICOM datasets on the fly, reducing the need to locate real, anonymised patient data for system testing.

  • Dynamic Generation: Instantly generate dummy patients, studies, and series.
  • Custom Patterns: Configure image width, height, and visual pattern types to test viewer rendering.
  • Instant Source Assignment: Generate DICOMs and immediately assign them as the image source for your next acquisition run.

Stub SCP Server & Network Logging

Validate incoming connections without a full PACS installation. Includes a lightweight SCP receiver and detailed network logging.

  • Dummy PACS Receiver: Start a local Stub SCP server on any port to receive and store incoming DICOM images.
  • Stub Worklist Server: Emulate a DICOM Modality Worklist (MWL) provider to serve test patient schedules to external systems.
  • Real-time DICOM Log: Monitor every byte of DICOM network traffic. Track C-ECHO pings, associations, rejections, and transfer syntax negotiations.
  • Exportable Logs: Filter network traffic dynamically and export logs for external review and compliance testing.

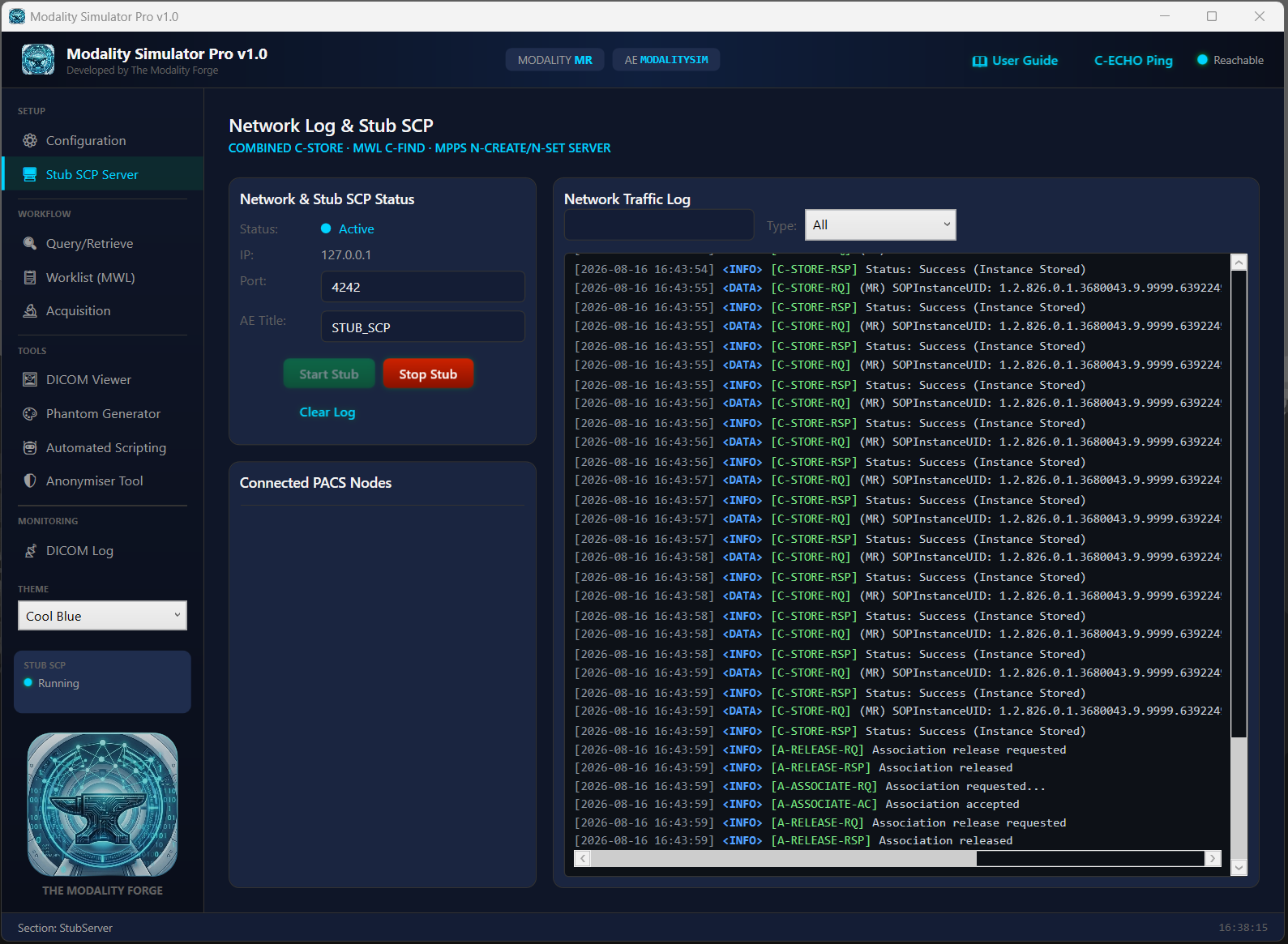

Network Log and Stub SCP Interface

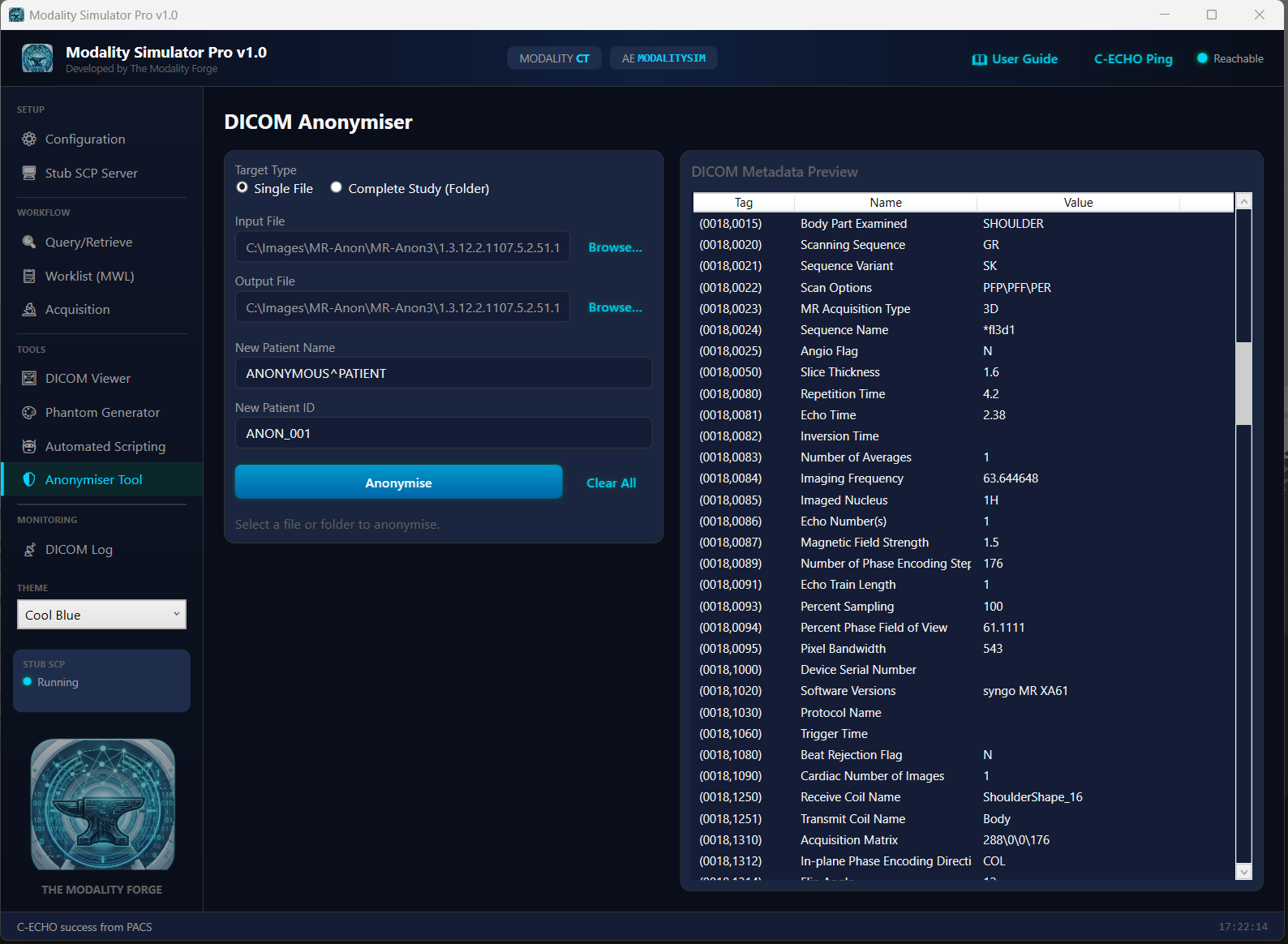

DICOM Anonymiser and Viewer Interface

Anonymisation & Automated Scripting

Tools for field engineers and QA developers to script tests and anonymise data.

  • Built-in DICOM Viewer: Inspect incoming or outgoing files directly in the app. Supports zooming, panning, and complete metadata tag inspection.
  • DICOM Anonymiser: Scrub Protected Health Information (PHI or PID) from existing datasets. Apply new Patient Names and IDs to a single file or a complete folder.
  • Automated Scripting Engine: Write JSON-based scripts to run automated sequences (e.g., Echo -> FetchWorklist -> Acquire -> Store) for heavy load-testing.

Supported Modalities

We accurately emulate 16 built-in modalities with exact SOP Class UIDs and realistic scan timings.

CT Computed Tomography
MR Magnetic Resonance
CR Computed Radiography
DX Digital X-Ray
US Ultrasound
PT Positron Emission Tomography
NM Nuclear Medicine
MG Mammography
RF Fluoroscopy
OT Other
XA X-Ray Angiography
ES Endoscopy
OP Ophthalmic Photography
SC Secondary Capture
IO Intra-oral Radiography
PX Panoramic X-Ray
